BSU | UHF Elevated Antenna

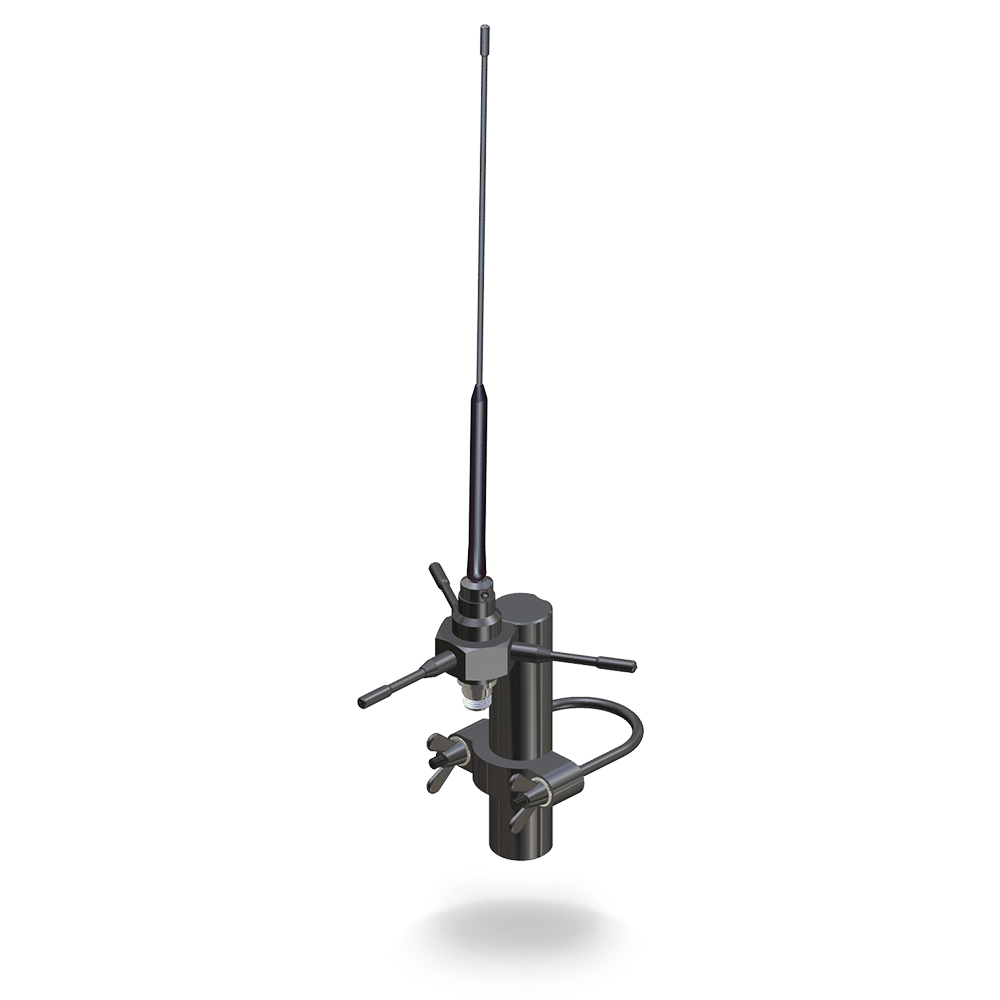

- The BSU type antenna is a 2dBi gain discreet ruggedized product and is suitable for temporary field use or permanent installation. The antenna has a black plated brass centre hub, which is mounted on a nylon stub mast and is supplied with mounting hardware.
Features
- Mast mount
- UHF version
- Ideal for fixed radio terminal application
- Quick assembly and installation
Product Overview
Description
Part Numbers
Specification
Accessories
Description
The BSU type antenna is a 2dBi gain discreet ruggedized product and is suitable for temporary field use or permanent installation. The antenna has a black plated brass centre hub, which is mounted on a nylon stub mast and is supplied with mounting hardware.
The hub has a N socket terminal which allows use of different types and diameter coaxial cable, depending on cable length required. The plastic coated ¼ wave radiating element is fitted to the centre of the hub and three helical elements provide the ground plane.
Typical applications for this antenna are: for use on mobile pump up mast, fixed radio terminal (FRT) and mobile/fixed repeater installationsPart Numbers
| SKU | Colour | Frequency Range | Gain | UHF | BSU-S1 | Black | 380 – 400MHz | 2dBi | Yes |
|---|
| N (f) | BSU-S2 | Black | 410 – 430MHz | 2dBi | Yes |
| N (f) | BSU-S4 | Black | 450 – 470MHz | 2dBi | Yes |
| N (f) | BSU-TET | Black | 380 – 430MHz | 2dBi | Yes |
| N (f) | BSU-TETG5 | Black | 380 – 430MHz | 5dBi | Yes |
| N (f) | BSU-U | Black | 430 – 472MHz | 2dBi | Yes |
| N (f) |
Specification
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 100 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | max: 374 (mm) | 14.72 (in) |
| Width | max: 300 (mm) | 11.81 (in) |
| Height | max: 707 (mm) | 27.83 (in) |
| Diameter | max: 380 (mm) | 14.96 (in) |
| Operating Temperature | -30°/ +80°C (-22.0°/ +176.0°F) |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | N (f) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast |
| Mounting Methods | Mast | TECHNOLOGY DATA |
| Technology | UHF; TETRA |
